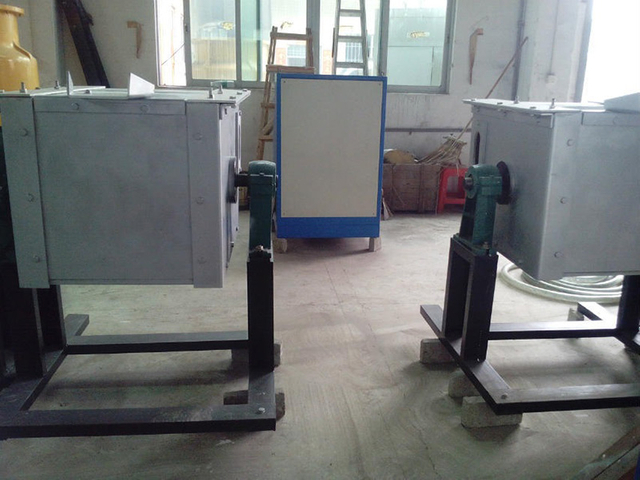

Small steel shell furnace is a type of steel shell furnace specially customized for small capacity users. It is suitable for the capacity range of 200kg-500kg.

Compared with the conventional steel shell furnace, the biggest difference of the small steel shell furnace is that the reducer tilting furnace is adopted instead of the hydraulic tilting furnace, which is a more economical choice. In addition, the small steel shell furnace has the following unique advantages like the company's other steel shell furnaces:

1. All-round protective cover: a protective cover is set on the periphery of the furnace body to effectively protect the safety of the induction coil and water-cooled cable, easy to disassemble, and does not affect the maintenance of the furnace body;

2. Waterless yoke: The traditional water-cooled yoke is canceled, and the air-cooled yoke is used except for the water-cooled cable connection part, which greatly avoids the hidden danger of water leakage in the later stage;

3. Rodless coil: The coil is wound by the horizontal winding process, and the coil turns are closely consistent and have no segmentation, which can obtain the maximum electrical efficiency; at the same time, the coils support each other, the overall structure is sturdy, and will not be deformed after long-term use; in addition, The coil is treated with porcelain-fired insulation, and insulating gaskets are evenly implanted between adjacent turns, so the insulation performance is superior, and high-voltage ignition can be effectively avoided.
